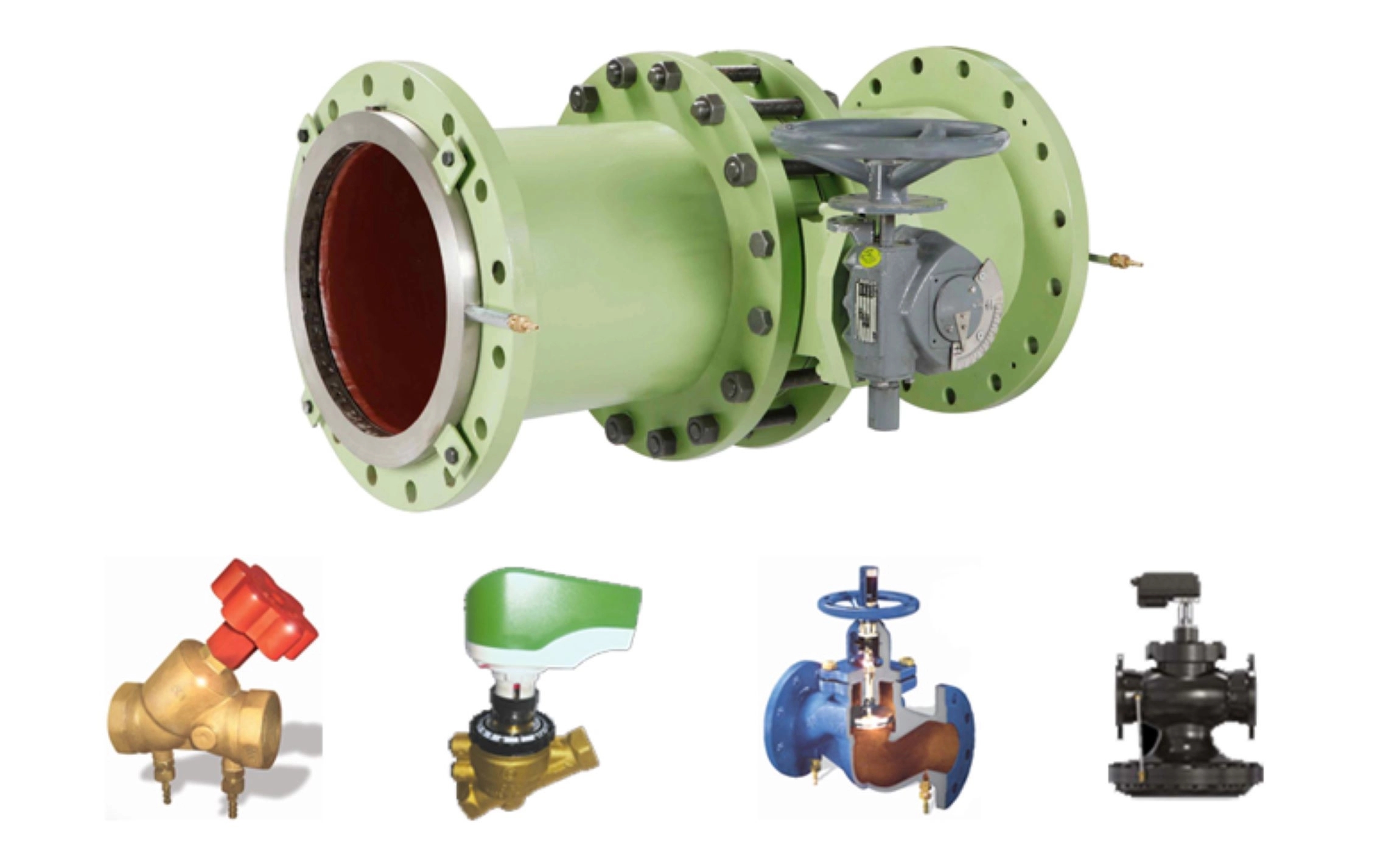

Advance Balancing Valves

Balancing problems are quite evident in multi-user systems, like Central Air Conditioning Plants and In-Process Heat Exchangers. The valve is a combination of a shut-off valve plus a Flow Regulating Valve and a Flow Measuring Station. It is not merely a valve but a system.Advance make Balancing Valves provide a full complement (size ranges, pressure ratings, operating temperatures, and fluid characteristics) including related services such as on-site commissioning for optimum performance.

Application :

As a double regulating Balancing and Shut-off Valve in Hydronic systems. With special alloys, these valves can be used in Process plants too for double regulating & flow measurement functions.

Service Suitability :

Liquid water, Steam and Ethylene Glycol

Temperature Range : From -40 deg C for low temperature valves to 120 deg C for high temperature valves (standard)

Maximum Flow : maximum upto 5 m/s fluid velocity

Flow Accuracy : within +7% of flow within the recommended operating range

Direction of Flow :

The flow direction is marked by an arrow on the body.

Refer catalogue for more information
