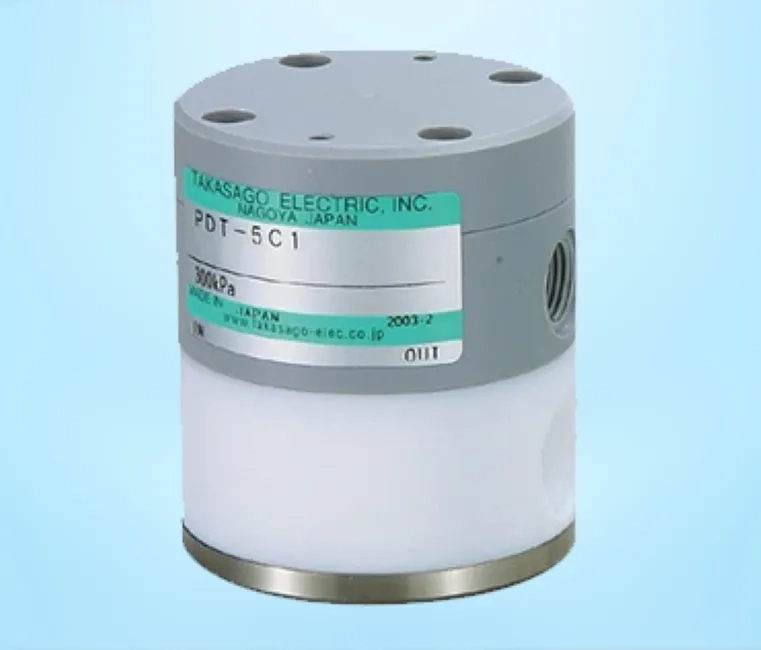

Sandur Air Operated Valves - PDT Series [2-way NC]

These valves come in composite materials to achieve enough physical strength

Air Operated Valves also possess tons of interesting features to use in diverse industries

They mainly have a pressure limiting and integral relief valve and a check valve to resist the fluid flow in a particular direction

Besides, the valves contain meter-in systems and meter-out systems with an integral bypass

Here, the integral bypass bypasses or diverts excessive water flow, while meter-in and meter-out systems control the flow of the actuator inlet and outlet respectively

Air valves also have a swivel device to rotate the actuator for its alignment over a cylinder in every possible orientation

choose automated air valves, you also get durability, optimum performance, and minimum possible maintenance.

FEATURES / CHARACTERISTICS

This valve is an air-operated valve with 44.5 x 52.0 mm outer dimensions. The orifice diameter is 4.0 - 5.0 mm. PTFE is the material for the body and seal material, which allows the valve to have high chemical compatibility

Model Number: PDT-4C1

Outer Dimensions: φ44.5 x 52 mm

Method: Air Operated Valve

Type: 2-way NC

Port Connection: Rc1/4 or Rc1/8

Orifice(mm): 4.0 or 5.0 mm

IN Port Pressure: 0~300 kPa

OUT Port Pressure (NC): 0~100 kPa

Fluid Temperature Range: 0~60°C

Ambient Temperature Range: 0~60°C

Power Consumption: 0 W

Body Material: PTFE

Seal Material: PTFE

Other Wetted Materials; PCTFE

Remarks: Supply: 300 kPa Air
