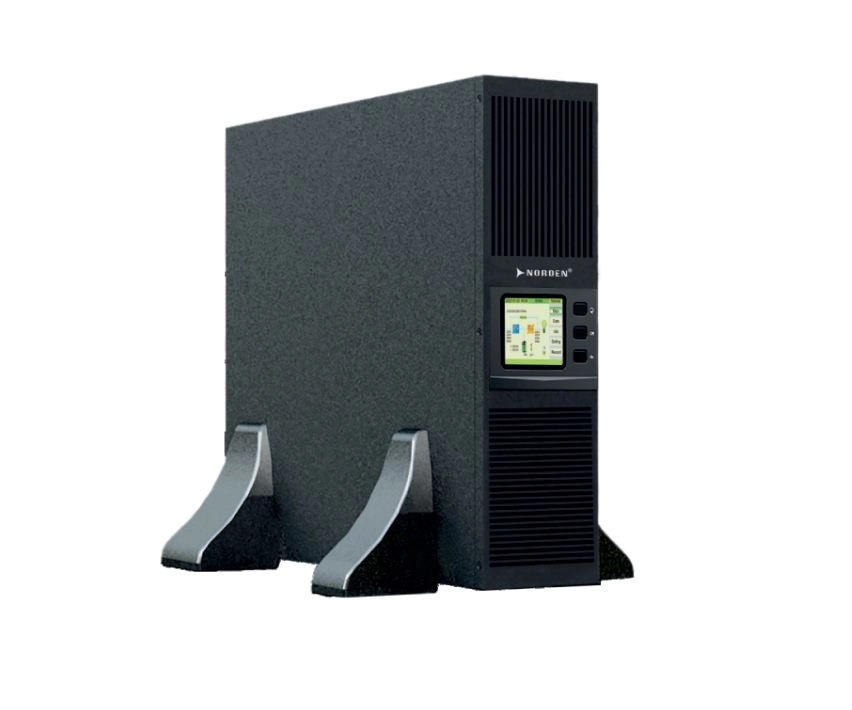

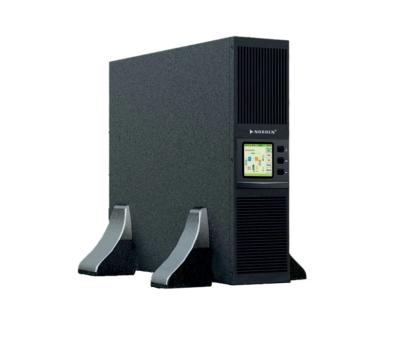

Norden 6/10kVA Online Transformerless Rack Mount UPS

The Max Power Pro Series 6 and 10 kVA Rack Mount Uninterruptible Power Supply (UPS) systems are designed to provide robust and reliable power protection for critical equipment in demanding environments. With their unique capability of accepting a 3-phase input and providing a single-phase output, they offer versatility and efficiency for various power needs.

Features:

Online double conversion with DSP control

Generator compatible

ECO mode operation for energy saving

LCD supports Rack/Tower convertible design

Intelligent fan speed regulation

Dual input source

Input current harmonic:<3%

Support 3/1 and 1/1 operation

N+X parallel redundancy, support maximum 4 units in parallel

Self-testing when UPS startup

50/60Hz Frequency converter mode

Cold Start

Wide input voltage range: 208~478Vac

Wide input frequency range: 40~70Hz

Optimization battery group, the quantity of battery: 16/18/20pcs (32~40pcs supportable)

Multiple communication interface: RS232/RS485/ EPO/(Relay card/SNMP card optional)

Applications: data centers, telecommunication facilities, industrial operations

Refer Catalogue for more information.
